Weintek iR Series
About the Weintek iR Series
Offering unrivalled flexibility, the system incorporates intuitive, easy-to-use configuration software that streamlines setup for both new and experienced users. In addition to its user-friendly design, it provides extensive support for widely adopted communication protocols such as Modbus TCP, EtherNet/IP, EtherCAT and CANopen. This broad compatibility ensures that the device can be integrated into a wide range of industrial automation environments, making it suitable for manufacturers looking to modernise equipment, enhance connectivity or unify mixed-vendor architectures. With the capability to integrate effortlessly with most controllers, the system simplifies both initial deployment and long-term maintenance. Its DIN rail–mountable design further enhances installation efficiency, helping users reduce panel space, minimise wiring complexity and create cleaner, more organised control cabinets.

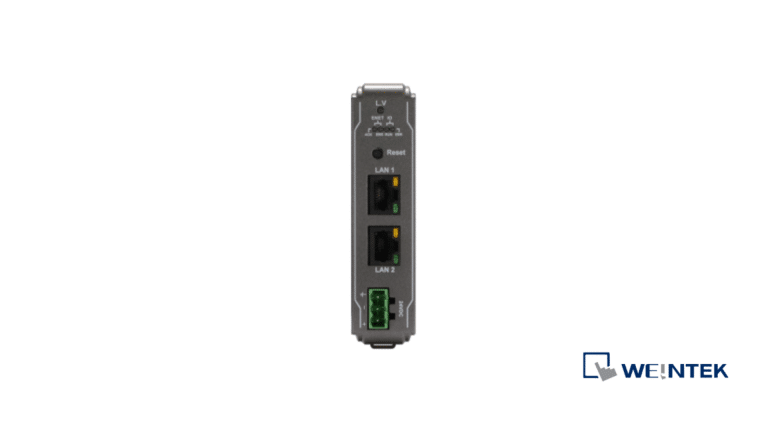

iR-ETN
iR Coupler, Remote communication module
Technical Specification
- No. of Bus Terminals: Depends on Power Consumption
- Digital Input Point: Max. 256
- Digital Output Point: Max. 128
- Analog Input Channel: Max. 64
- Analog Output Channel: Max. 64
- No. of Ports: 2
- Data Transfer Rate: 10/100 Mbps
- Data Transfer Medium: 4 x 2 twisted pair copper cable; category 3 (10 Mbps), category 5 (100 Mbps)
- Distance Between Stations: 100 m between hub/switch and Bus Coupler or between Bus Coupler and Bus Coupler
- Protocol: Modbus TCP/IP Server, EtherNet/IP adapter
- Max. Number of TCP/IP Connections: 8 connections
- Topology: Line or star wiring
- Isolation: Network to Logic Isolation : Yes
Datasheet
To access the datasheet, please contact us.
iR-DQ08-R
iR Digital I/O, Remote communication module
Technical Specification
- Output Logic: Relay
- Number of Outputs: 8
- Current Consumption: 220mA@5VDC
- Output Voltage: 250VAC/30VDC
- Output Current: 2A per channel (Max 8A)
- Response Time: OFF->ON: 10ms, ON->OFF: 10ms
- Isolation: Electromagnetic Isolation
Datasheet
To access the datasheet, please contact us.
iR-AI04-VI
iR Analog I/O, Remote communication module
Technical Specification
- Number of Analog Inputs: 4 (±10v/ ±20mA)
- Number of Analog Outputs: 0
- Current Consumption: 70mA@5VDC
- Analog Power Supply: 24 VDC(20.4 VDC~28.8 VDC) (-15%~+20%)
- PCB Coating: Yes
- Enclosure: Plastic
- Dimensions WxHxD: 27 x 109 x 81 mm
- Weight: Approx. 0.12 kg
- Mount: 35mm DIN rail mounting
Datasheet
To access the datasheet, please contact us.
iR-AI04-TR
iR Temperature I/O, Remote communication module
Technical Specification
- Number of Input Channels: 4 (RTD/ Thermocouple)
- Current Consumption: 65mA@5VDC
- Analog Power Supply: 24 VDC(20.4 VDC~28.8 VDC) (-15%~+20%)
- PCB Coating: Yes
- Enclosure: Plastic
- Dimensions WxHxD: 27 x 109 x 81 mm
- Weight: Approx. 0.12 kg
- Mount: 35mm DIN rail mounting
- Protection Structure: IP20
Datasheet
To access the datasheet, please contact us.
