cMT X Series
About the cMT X Series
The cMT X Series feature four levels of models. From their Basic model to their Headless Models, the cMT X Series boasts unparalleled computing power, thanks to its Quad-core CPU. Further, offering a smooth and intuitive experience. cMT X Series goes beyond its outstanding performance by integrating innovative features such as data integration, mobile monitoring, and cloud
services. It’s the smart HMI you need.
cMT2058XH
HMI with 4.3'' WVA Display
Technical Specification
- Display: 4.3” WVA
- Resolution: 800 x 480
- Brightness (cd/m2): 530
- Contrast Ratio: 800:1
- Backlight Life Time: >30,000 hrs.
- Colours: 16.7M
- LCD View Angle (T/B/L/R): 80/80/80/80
- Pixel Pitch (mm): 0.1188(H) x 0.1122(V)
Datasheet
To access the datasheet, please contact us.

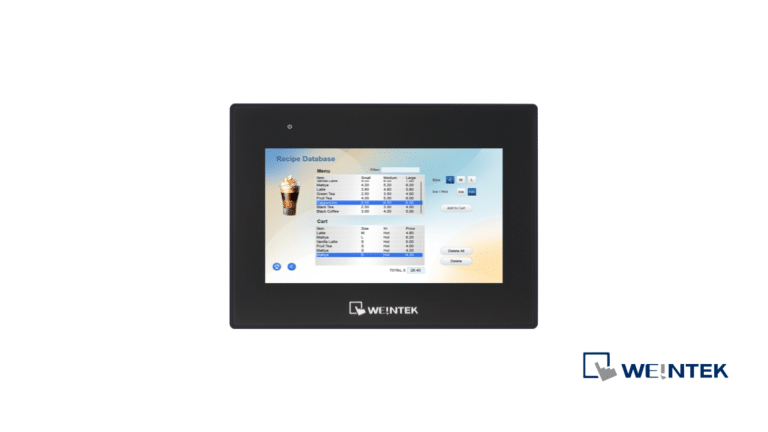

cMT2078X
HMI with 7'' TFT Display
Technical Specification
- Display: 7” TFT
- Resolution: 800 x 480
- Brightness (cd/m2): 400
- Contrast Ratio: 800:1
- Backlight Life Time: >30,000 hrs.
- Colours: 16.7M
- LCD View Angle (T/B/L/R): 80/60/80/80
- Pixel Pitch (mm): 0.1926(H) x 0.179(V)
Datasheet
To access the datasheet, please contact us.
cMT2108X2
HMI with 10.1" WVA Display
Technical Specification
- Display: 10.1” WVA
- Resolution: 1024 x 600
- Brightness (cd/m2): 350
- Contrast Ratio: 1000:1
- Backlight Life Time: >50,000 hrs.
- Colours: 16.7M
- LCD View Angle (T/B/L/R): 89/89/89/89
- Pixel Pitch (mm): 0.2175 (H) x 0.2088 (V)
Datasheet
To access the datasheet, please contact us.
cMT2166X
HMI with 15.6" WVA Display
Technical Specification
- Display: 15.6″ WVA
- Resolution: 1920 x 1080
- Brightness (cd/m2): 300
- Contrast Ratio: 800:1
- Backlight Life Time: >30,000 hrs.
- Colours: 16.2M
- LCD View Angle (T/B/L/R): 89/89/89/89
- Pixel Pitch (mm): 0.17925(H) x 0.17925(V)
Datasheet
To access the datasheet, please contact us.
cMT3072XH3
HMI with 7" WVA Display
Technical Specification
- Display: 7″ WVA
- Resolution: 1024 x 600
- Brightness (cd/m2): 550
- Contrast Ratio: 800:1
- Backlight Life Time: >30,000 hrs.
- Colours: 16.7M
- LCD View Angle (T/B/L/R): 85/85/85/85
- Pixel Pitch (mm): 0.1506(H) x 0.1432(V)
Datasheet
To access the datasheet, please contact us.
cMT3102X (R)
HMI with 10.1" WVA Display
Technical Specification
- Display: 10.1″ WVA
- Resolution: 1024 x 600
- Brightness (cd/m2): 350
- Contrast Ratio: 1000:1
- Backlight Life Time: >50,000 hrs.
- Colours: 16.7M
- LCD View Angle (T/B/L/R): 89/89/89/89
- Pixel Pitch (mm): 0.2175 (H) x 0.2088 (V)
Datasheet
To access the datasheet, please contact us.
cMT3162X
HMI with 15.6" WVA Display
Technical Specification
- Display: 15.6″ WVA
- Resolution: 1920 x 1080
- Brightness (cd/m2): 300
- Contrast Ratio: 800:1
- Backlight Life Time: >30,000 hrs.
- Colours: 16.2M
- LCD View Angle (T/B/L/R): 89/89/89/89
- Pixel Pitch (mm): 0.17925(H) x 0.17925(V)
Datasheet
To access the datasheet, please contact us.
cMT-FHDX-820
HMI with external touchscreen
Technical Specification
- Flash: 4 GB
- RAM: 1 GB
- CPU: Quad-core RISC
- Memory Card Type: microSD x 1
- USB Host: USB 2.0 x 1
- Ethernet Port: LAN 1: 10/100/1000 Base-T x 1,
LAN 2: 10/100 Base-T x 1
Datasheet
To access the datasheet, please contact us.
