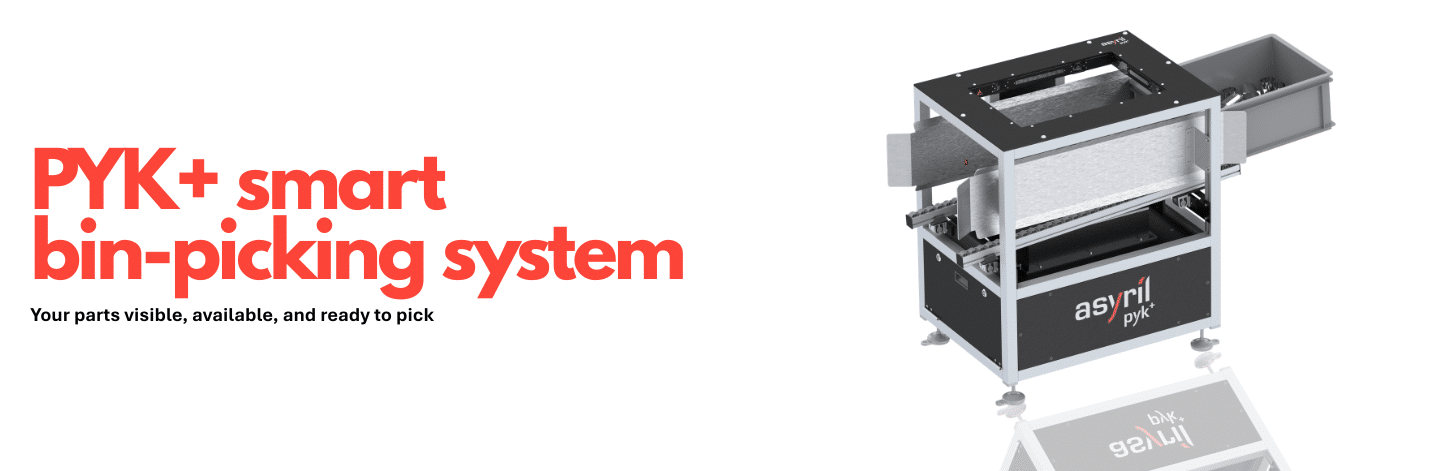

Pyk+ Smart Bin-Picking System
About the Pyk+
PYK+ combines AI-based vision and integrated vibration repositioning system in an easy-to-deploy bin-picking solution, designed for simple integration with any robot. No part left behind with integrated vibration repositioning system for easier picking, while the unified get_part command simplifies robot integration. CAD-based AI training ensures stable part detection across changing conditions, while 8 surrounding cameras and integrated lighting provide full bin coverage with no dead zones. PYK+ helps reduce repetitive manual handling, support production continuity, and let operators focus on higher value work.
Discover Pyk+ Range
About Pyk+ Flow
Designed for standard 400 x 600 mm KLT bins with depths up to 220mm. Its integrated vibration repositioning system enables continuous bin picking. It leverages AI-based vision for smart detection. Simple integration with any robot.
Technical Specification
- Part Sizes: 50-300mm
- Power Supply: 100-240V (50-60Hz)
- Air Pressure: 6 bar
- Supported Bins: KLT of 400x600mm; max 220mm deep
- General Dimensions (LxIxH): 850 x 620 x 976mm
- Weight (bin and parts excl.): 115kg
Datasheet
To access the datasheet for the Pyk+ Flow, please contact us.
About Pyk+ Lift
The PYK+ Lift extends autonomy with custom 400 x 600 mm bins with integrated rising floor and 400mm depth. Its integrated vibration repositioning system enables continuous bin picking. It leverages AI-based vision for smart detection. Simple integration with any robot.
Technical Specification
- Part Sizes: 50-300mm
- Power Supply: 100-240V (50-60Hz)
- Air Pressure: 6 bar
- Supported Bins: Special bin with lifting floor, 400x600mm; 420mm deep
- General Dimensions (LxIxH): 850 x 620 x 976mm
- Weight (bin and parts excl.): 105kg
Datasheet
To access the datasheet for the Pyk+ Lift, please contact us.
Training and Support
With three levels of after-sales customer support to choose from, you can always access the expert assistance you need to gain maximum efficiency from your equipment. Our technical engineers, each with 30+ years’ experience, are on hand to offer guidance and advice. Technical training provision includes in-person facilitated workshops and practical courses.
