Meca500
Meca500

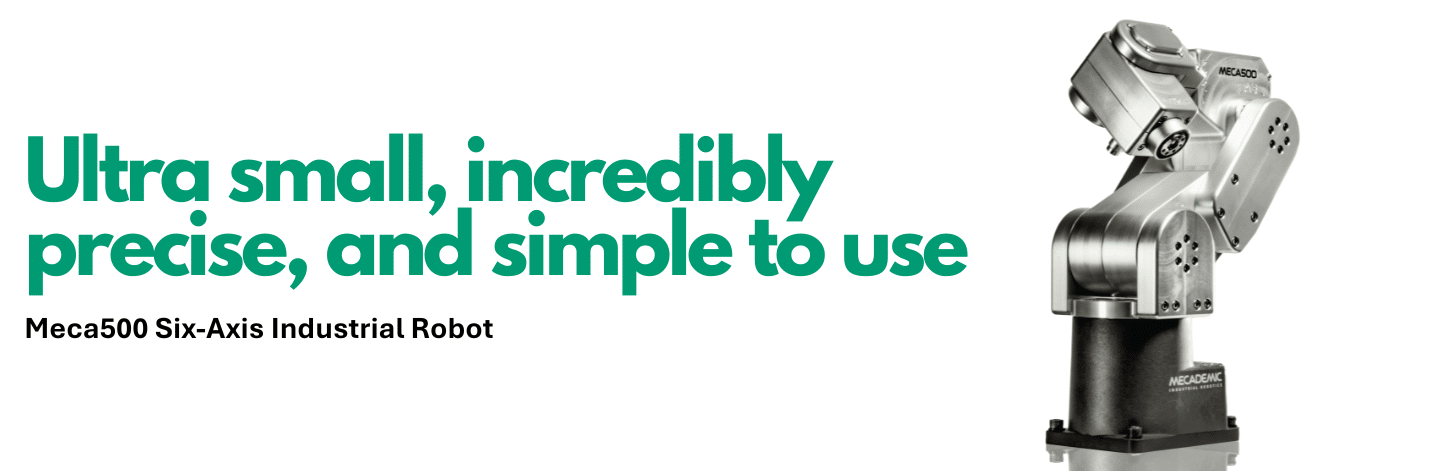

Ultra-small, incredibly precise, and simple to use
Mecademic’s Meca500 is by far the smallest and most compact six-axis industrial robot arm. It is also the most precise one. Unlike most other industrial robots which are usually complex stand-alone systems, the Meca500 is a plug-and-work automation component. The Meca500 robot is a slave component rather than a master, which makes it very easy to integrate via any computer or PLC.
The Meca500 doesn’t require any training courses, software installations, or additional options to purchase. It’s that simple!
Additional Information
- Highly Precise: 0.005 mm position repeatability.
- Ultra-Compact: The controller is embedded into the base.
- Easy to Integrate: Hardware- and software-agnostic.
- Low TCO: Maximise value with minimal ownership costs.
- Energy Efficient: Consumes less than 100 W.
- Robust Build: Precision machined aluminum.
Horizontal Reach
- 330 mm*
Position Repeatability
- 0.005 mm
Rated Payload
- 500 g
Maximum Payload
- 1.0 kg (under special conditions)
Weight of Robot Arm
- 4.6 kg
Mounting Orientations
- Any angle
Joint Range
- Joint 1: [−175°, 175°]
- Joint 2: [−70°, 90°]
- Joint 3: [−135°, 70°]
- Joint 4: [−170°, 170°]
- Joint 5: [−115°, 115°]
- Joint 6: [−36,000°, 36,000°]
Maximum Joint Speed
- Joint 1 & 2: 225°/s
- Joint 3: 225°/s
- Joint 4 & 5: 350°/s
- Joint 6: 500°/s
Operating Ambient Temperature Range
- [5°C, 35°C]
Operating Ambient Relative Humidity Range
- [10%, 80%] (non-condensing)
Airborne Noise Level
- 50dB (at full speed)
Cleanroom Classification
- ISO Class 6**
Robot Body Material
- Anodized aluminum alloy
IP Rating
- IP40
Notes
* Reach from flange is 330 mm. Reach from wrist is 260 mm.
** Certified Fraunhofer.
Communications Protocols
- EtherCAT®
- EtherNet/IP™
- PROFINET®
- TCP Socket
Programming Languages
- C++
- C#
- LabVIEW™
- Python™
Available PLC Packages
- Allen-Bradley
- OMRON
- SIEMENS
- BECKHOFF
