Epson CX-A Series Robots
About the CX-A Series Robots
The Epson ProSix CX4-A six-axis robot series provides high performance in small places, thanks to its slimline body. It’s capable of handling up to 4kg payloads, and the expanded motion range makes it a great choice for complex movements or reaching difficult positions. The Epson ProSix CX7-A six-axis robot series provides high performance in small places, thanks to its slimline body. It’s capable of handling up to 7kg payloads, and the expanded motion range makes it a great choice for complex movements or reaching difficult positions.

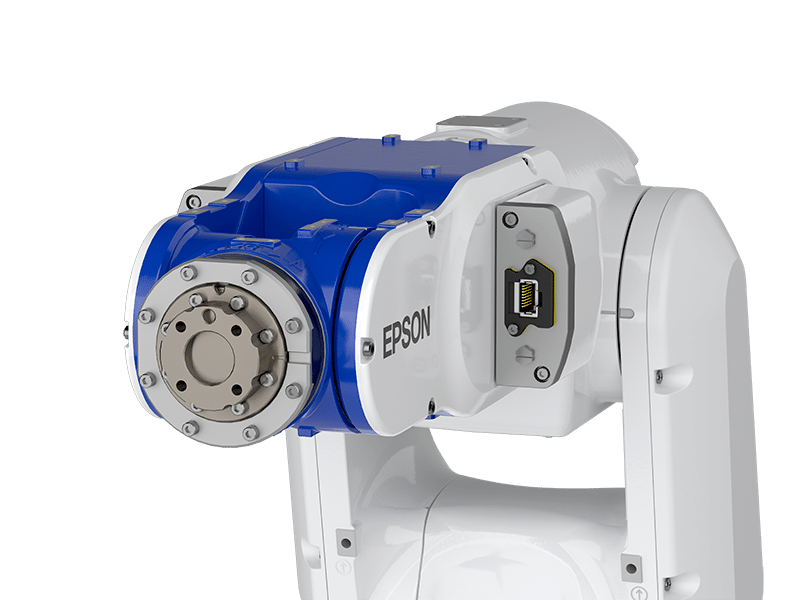

Epson CX4-A
High performance with slimline design
The Epson ProSix CX4-A Six-Axis robot series provides high performance in small places, thanks to its slimline body. It’s capable of handling up to 4kg payloads, and the expanded motion range makes it a great choice for complex movements or reaching difficult positions.
Model Information
Benefits
- Higher motion efficiency
Expanded J4 motion range and optimised arm structure to allow a higher motion efficiency and increase main working areas. - Enhanced wrist robustness
More resilient wrist axis and increased holding torque. - Standardised EoA connection (ISO)
Compatible with all common end effector tools and other robots on the market. - Improved motion control, accuracy and cycle times
Updated motion control algorithm for improved repeatability and faster cycle times. - Fully integrated
Complete Epson solution including robot, controller and software. - Safer operation
User-friendly safety function manager, to set safe zones and speed.
Technical Specification
For an in-depth look at the technical specification for the CX4-A models, please contact us.
Mounting Configuration
Wall, Ceiling, Pedestal
Model Options
- Epson ProSix CX4-A601S/RC800-A/RC+8
- Epson ProSix CX4-A601SW/RC800-A/RC+8
- Epson ProSix CX4-A601C/RC800-A/RC+8
- Epson ProSix CX4-A601CW/RC800-A/RC+8
- Epson ProSix CX4-A601P/RC800-A/RC+8
- Epson ProSix CX4-A601PW/RC800-A/RC+8
Datasheet
To access the datasheet for this product, please contact us.

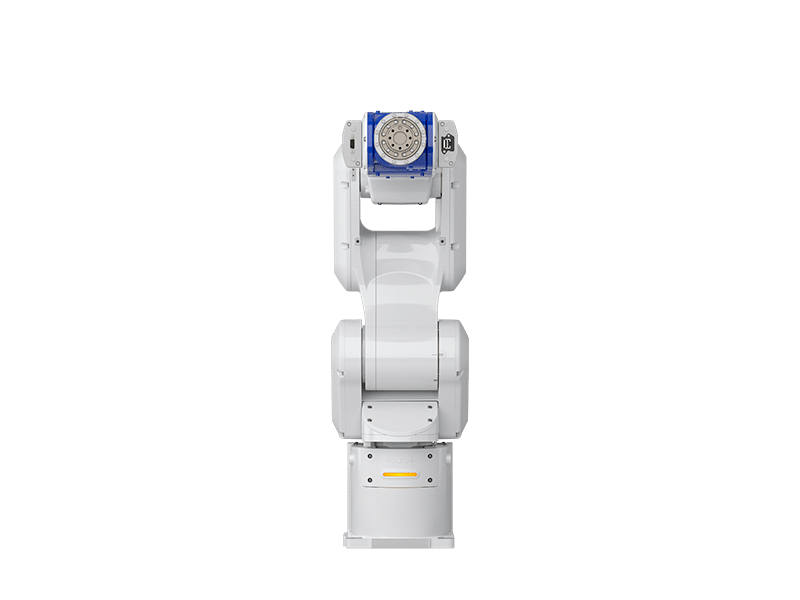

Epson CX7-A
High performance in small places, thanks to its slimline body
The ProSix CX7-A has an optimised arm structure and layout, expanding the operating area and allowing for more flexible machine layouts. In addition, the expanded J4 motion range allows for a higher motion efficiency, and there are fewer arm configuration changes required to reach certain positions. Reduce engineering time through the easy definition of safe zones and safe speed, using the safety function manager and integrated 3D view.
Model Information
Benefits
- Higher motion efficiency
Expanded J4 motion range and optimised arm structure to allow a higher motion efficiency and increase main working areas. - Enhanced wrist robustness
More resilient wrist axis and increased holding torque. - Standardised EoA connection (ISO)
Compatible with all common end effector tools and other robots on the market. - Improved motion control, accuracy and cycle times
Updated motion control algorithm for improved repeatability and faster cycle times. - Fully integrated
Complete Epson solution including robot, controller and software. - Safer operation
User-friendly safety function manager, to set safe zones and speed.
Technical Specification
For an in-depth look at the technical specification for the CX7-A models, please contact us.

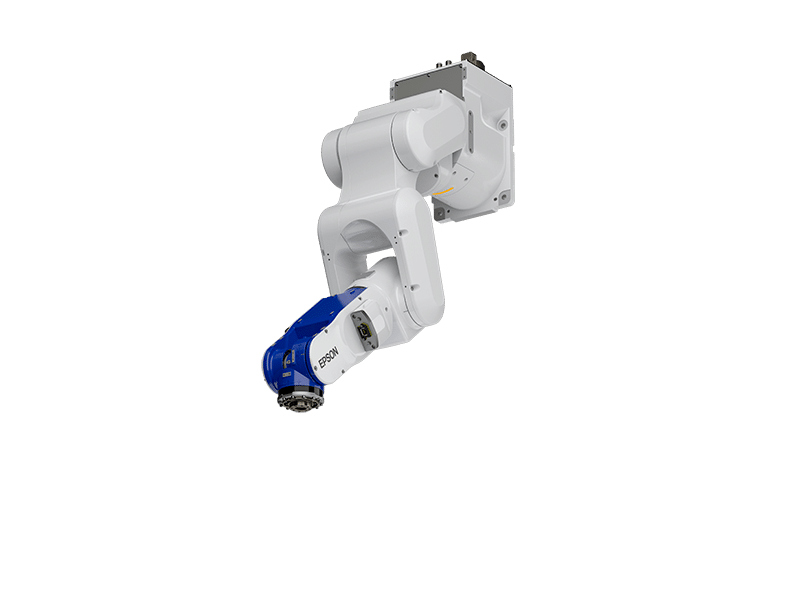

Mounting Configuration
Wall
Model Options
- Epson ProSix CX7-A701S/RC800-A/RC+8
- Epson ProSix CX7-A701SW/RC800-A/RC+8
- Epson ProSix CX7-A701C/RC800-A/RC+8
- Epson ProSix CX7-A701CW/RC800-A/RC+8
- Epson ProSix CX7-A701P/RC800-A/RC+8
- Epson ProSix CX7-A701PW/RC800-A/RC+8
- Epson ProSix CX7-A901S/RC800-A/RC+8
- Epson ProSix CX7-A901SW/RC800-A/RC+8
- Epson ProSix CX7-A901C/RC800-A/RC+8
- Epson ProSix CX7-A901CW/RC800-A/RC+8
- Epson ProSix CX7-A901P/RC800-A/RC+8
- Epson ProSix CX7-A901PW/RC800-A/RC+8
Datasheet
To access the datasheet for this product, please contact us.
Training and Support
With three levels of after-sales customer support to choose from, you can always access the expert assistance you need to gain maximum efficiency from your equipment. Our technical engineers, each with 30+ years’ experience, are on hand to offer guidance and advice. Technical training provision includes in-person facilitated workshops and practical courses.
