Epson AX6 Collaborative Robot

Introducing the Epson AX6

Introducing Epson’s first collaborative robot, the AX6. A masterpiece of high performance engineering, the AX6 offers exceptional performance with user-friendly operation. Crafted from lightweight carbon and finished with a smooth and screwless design, the AX6 offers a 900mm arm reach and 0.03mm repeatability. With state of the art connectivities for easy integration into machine landscape.

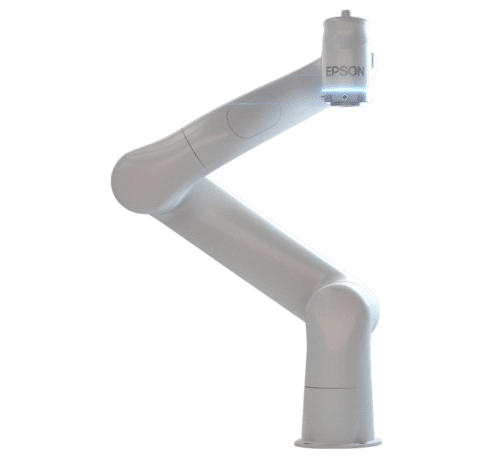

Epson AX6 Cobot

About the Epson AX6

A high-performance cobot arm with a small footprint

Crafted high-tech, ultra-rigid carbon, the AX6 Cobot arm is compact and hard wearing. Delivering power, agility and precision for the most sophisticated applications. The low weight and efficient motor mechanics provide energy-saving benefits, with user-friendly features, advanced connectivity options and continuous operation capabilities minimise downtime, even in chellenging conditions.

Technical Specification

Payload: 6kg maximum
Arm Length: (P-Point: J2-J5 Center) 900mm. (J2-J6 Flange surface) 990.
Repeatability (ISO 9283): Joints #1-6(mm): 0.03
Max. Motion Range: Joint #1 (deg) ±207, Joint #2 (deg) ±155, Joint #3 (deg) ±160, Joint #4 (deg) ±200, Joint #5 (deg) ±155, Joint #6 (deg) ∞.
Max. Operating Speed: Joint #1 (deg/s) 180, Joint #2 (deg/s) 180, Joint #3 (deg/s) 180, Joint #4 (deg/s) 300, Joint #5 (deg/s) 300, Joint #6 (deg/s) 300. Cartesian at TCP (mm/s) 2000.
Weight: 17kg
Mounting Type: Floor, Wall, Ceiling
IP Classification: IP54
Cleanroom Classification (ISO 14644-1): ISO 5
Working Temperature: 0 to 40°C
Applicable Controller: Epson RC-A101
Safety Functions: SS2, SOS, SLS, SLP, PFL, STO, HGC

  • AX6-A901S/RC-A101/AX P./0.5m
  • AX6-A901S/RC-A101/AX P./3m

To access the datasheet for the AX6 Collaborative Robot, please contact us.

Request Information

Training and Support

With three levels of after-sales customer support to choose from, you can always access the expert assistance you need to gain maximum efficiency from your equipment. Our technical engineers, each with 30+ years’ experience, are on hand to offer guidance and advice. Technical training provision includes in-person facilitated workshops and practical courses.
