Weintek iP Series
About the Weintek iP Series
Equipped with a high-speed quad-core processor and paired with EasyBuilder Pro, the iP Series delivers smooth performance and easily manages complex multi-object windows as well as multi-screen switching. In addition, the iP Series features a 16.7-million-colour high-brightness LCD with up to 1024 × 600 resolution and wide viewing angles (T:60° / B:70° / L:70° / R:70°), ensuring excellent visual clarity. Further, it supports over 400 communication drivers, allowing seamless connection to a wide range of PLCs from various leading brands.

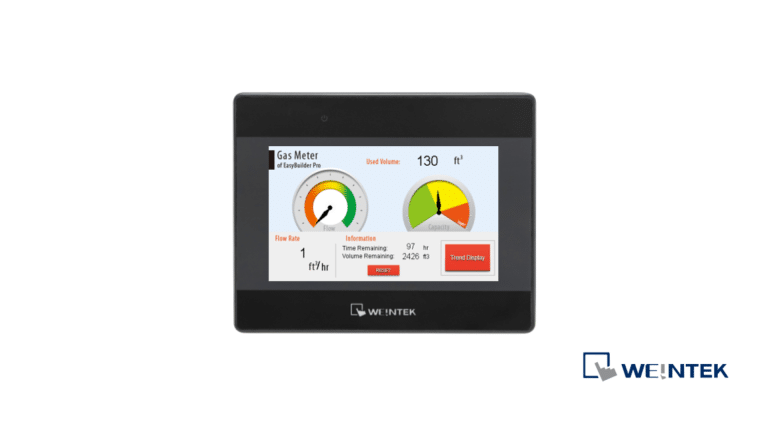

MT8052iP
4.3'' TFT HMI
Technical Specification
- Display: 4.3″ TFT
- Resolution: 480 x 272
- Brightness (cd/m2): 400
- Contrast Ratio: 500:1
- Backlight Life Time: >30,000 hrs.
- Colours: 16.7M
- LCD View Angle (T/B/L/R): 50/70/70/70
- Pixel Pitch (mm): 0.198(H) x 0.198(V)
Datasheet
To access the datasheet, please contact us.

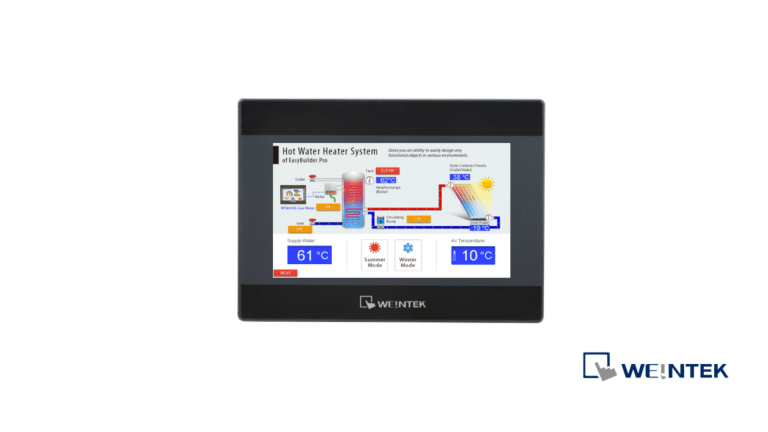

MT8072iP
7'' TFT HMI
Technical Specification
- Display: 7″ TFT
- Resolution: 800 x 480
- Brightness (cd/m2): 450
- Contrast Ratio: 500:1
- Backlight Life Time: >30,000 hrs.
- Colours: 16.7M
- LCD View Angle (T/B/L/R): 60/70/70/70
- Pixel Pitch (mm): 0.1926(H) x 0.179(V)
Datasheet
To access the datasheet, please contact us.
MT8106iP
10.1'' WVA HMI
Technical Specification
- Display: 10.1″ WVA
- Resolution: 1024 x 600
- Brightness (cd/m2): 350
- Contrast Ratio: 1000:1
- Backlight Life Time: 50,000 hrs.
- Colours: 16.7M
- LCD View Angle (T/B/L/R): 89/89/89/89
- Pixel Pitch (mm): 0.2175 (H) x 0.2088 (V)
Datasheet
To access the datasheet, please contact us.
Training and Support
With three levels of after-sales customer support to choose from, you can always access the expert assistance you need to gain maximum efficiency from your equipment. Our technical engineers, each with 40 years’ experience, are on hand to offer guidance and advice. Technical training provision includes in-person facilitated workshops and practical courses.
