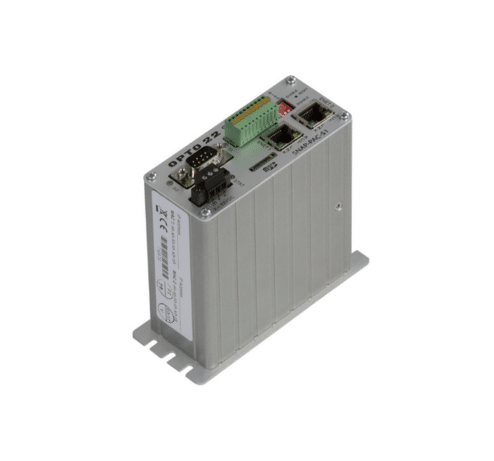

Image of SNAP-PAC-S1

SNAP-PAC-S1

SNAP PAC S-series Programmable Automation Controller for Ethernet Networks - REST API

The SNAP-PAC-S1 programmable automation controller offers powerful, real-time control and communication for industrial control, monitoring, and data acquisition needs. As a key component of the SNAP PAC System, the SNAP-PAC-S1 is fully integrated with PAC Project software, SNAP PAC I/O processors, and SNAP I/O modules, forming a robust, complete control system. Supporting digital and analog control, serial string handling, PID loops, and enterprise connectivity for diverse automation applications.

Technical Specification
  • Processor: 266 MHz 32-bit ColdFire® 5475 with integrated floating-point unit (FPU)
  • Memory: Total RAM: 32 MB, Total RAM for PAC Control Strategies: 16 MB, Battery-backed RAM: 8 MB, RAM File Storage: 2.5 MB, Flash File Storage: 4 MB
  • Removable Storage: (Models with manufacture dates of June 2014 and newer. Requires firmware R9.4a or higher and loader R6.1a or higher) MicroSD card slot: supports microSD or microSDHC cards to 32 GB.
    (Models with manufacture dates of November 2008 through May 2014 with firmware R8.4 or higher) McroSD card slot: supports microSD cards up to 2 GB
  • Ethernet communication to host and I/O: Two independent 10/100 Mbps Ethernet network interfaces (RJ-45 connec­tors). Each interface has a separate IP address (separate subnet). Connects to host (maximum 31 connections to port 22001; host performance may deteriorate near maximum) and I/O (maximum 15 connections to port 2001). Supports Auto MDI-X (crossover cable not needed)
  • Power Requirements: 8–32 VDC ±0.5, 11.3 VA maximum
    (SNAP-PAC-S1 controllers with serial numbers below 500,000 use 8–24 VDC)
  • Operating Temperature: -20 °C to 60 °C
  • Storage Temperature: -40 °C to 85 °C
  • Humidity: 0% to 95% relative humidity, non-condensing

CE, RoHS, DFARS; UKCA

SNAP PAC S-Series Controllers Data Sheet

Request Further Information

FAQs

What is the SNAP-PAC-S1 used for?

The SNAP-PAC-S1 is used for industrial automation applications, including machine control, process control, monitoring, data acquisition and integration with industrial networks.

Yes. The SNAP-PAC-S1 features two independent Ethernet interfaces, providing network connectivity for industrial control, communications and data applications.

The SNAP-PAC-S1 is programmed using PAC Control, which is part of the PAC Project software suite from Opto 22.

Yes. The SNAP-PAC-S1 supports a REST API, allowing applications and systems to communicate with the controller and access control and data functions over a network.
