EYE+ XTD
About EYE+ XTD
EYE+ XTD brings a new level of flexibility to robotic part localisation. Powered by advanced AI algorithms, it provides accurate part coordinates whether parts are placed on conveyors, in thermoformed trays, or on complex surfaces. From cable connection to first part pick, the intuitive interface guides you step by step, accelerating deployment and boosting productivity in demanding automation environments.
Introducing Eye+ XTD Robotic Guidance

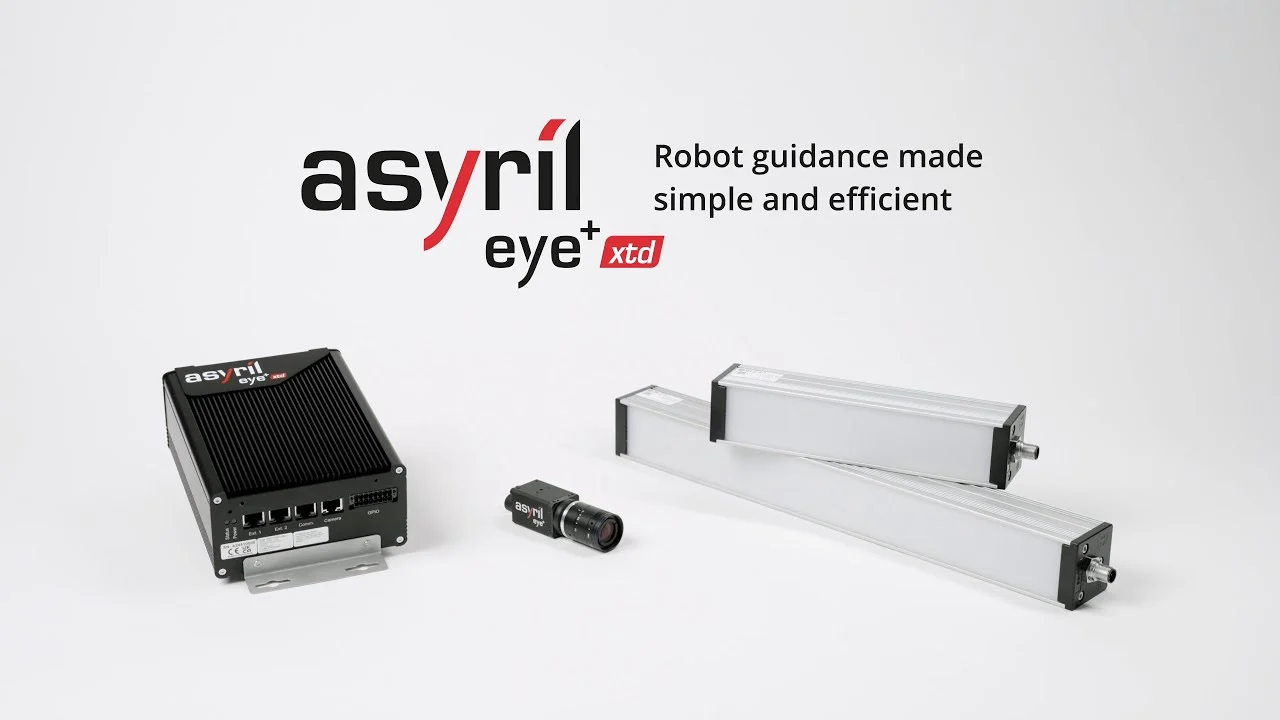

EYE+ XTD offers a user experience similar to the EYE+ for Asycube, enabling you to handle extended feeding applications. EYE+ XTD Studio delivers simplicity and efficiency in a ready-to-use solution dedicated to part picking. EYE+ XTD consists of a compact controller, a high resolution camera, and a power cable. This system enables reliable part localisation across various surfaces and devices.
Additional Information
Dimensions
141 x 187 x 71 mm
Weight (kg)
1.26 kg
Operating Temperature
+5 °C to 40 °C
Supply Voltage
24 VDC (+/- 5%)
Current
6.5 A max
- High resolution (6.3 MP)
- 4x Gigabit Ethernet (PoE for the camera)
- PoE cable for EYE+ camera.
- Ethernet cables for PLC or robot and laptop.
- Different frontlight colours and polarisation option.
- External lighting supported via GPIO connector.
- Bandpass and polarised filters.
- Asycube calibration platform.
- Fieldbus compatibility – EtherCAT.
- Fieldbus compatibility – EtherNET/IP.
- Fieldbus compatibility – PROFINET.
Software Plugins
For information regarding available plugins for the EYE+ XTD, click the above icon. *Please note that this will take you to the page that primarily opens up for Asycube plugins, click the next tab to show the plugins for EYE+.
