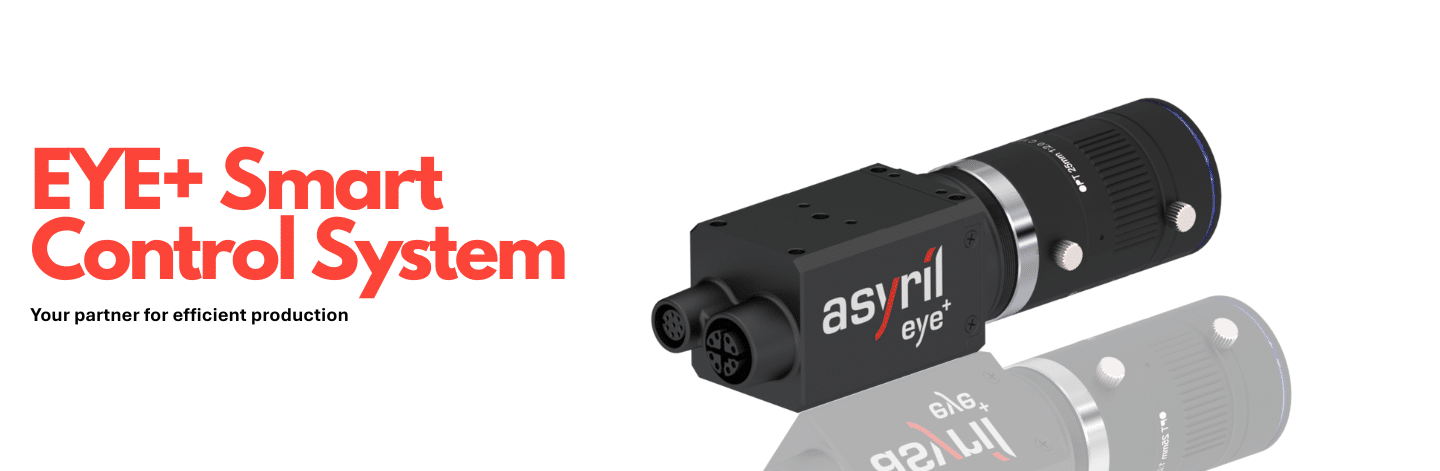

EYE+ Smart Control System
About EYE+ Smart Control System
EYE+ Smart Control System optimises the performance of your Asycube flexible feeder with an integrated vision based on Artificial Intelligence and a powerful controller. With EYE+ you have an innovative plug and play system that can be easily integrated into any automation machine. No previous vision experience is required to set up and use EYE+. Intuitive and simple to use, just follow the steps in the EYE+ Studio web interface. Allowing you to create and configure your recipes easily and in a few minutes, without additional costs, which ensures profitability when feeding parts in succession.
Time to upgrade to the EYE+ Smart Control System

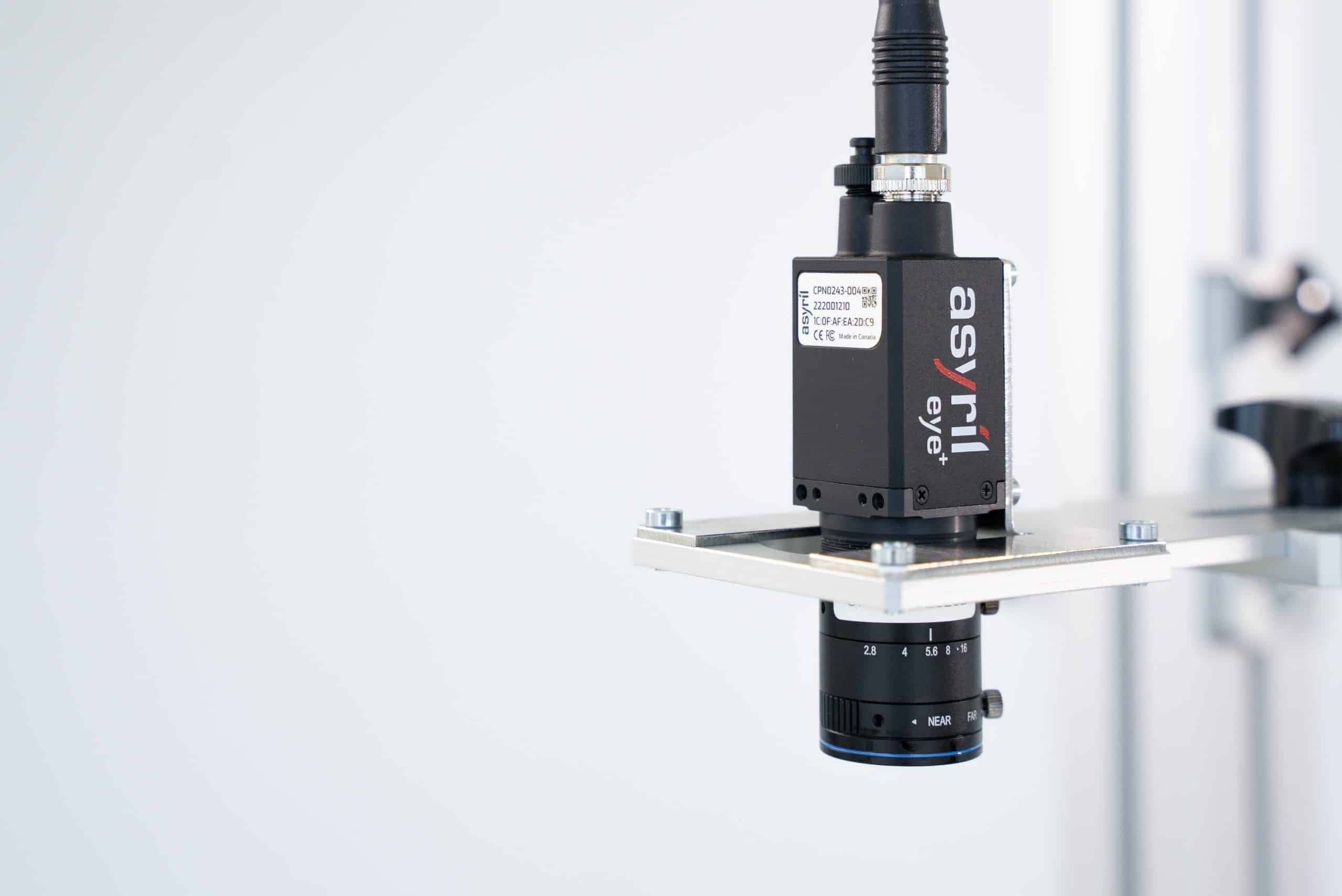

Consisting of a compact controller, a high resolution camera, a calibration plate and a power cable. This system allows the control of the hopper, the Asycube, the camera and the robot via the EYE+ Studio web interface.
Simple and intuitive to use, the Asyril flexible feeding configurator will analyse your requirements and recommend the ideal products and accessories, including the EYE+ smart control system tailored to your needs.
Additional Information
Dimensions
141 x 187 x 71 mm
Weight (kg)
1.26 kg
Operating Temperature
+5 °C to 40 °C
Supply Voltage
+24 VDC (+/- 5%)
Current
6.5 A max
- High Resolution (6.3 MP)
- 4x Gigabit Ethernet Ports (PoE for one camera)
- 1. Ethernet for PLC, robot or PC.
- 2. Ethernet for EYE+ camera.
- 3. Ethernet for Asycube.
- 4. Ethernet for Asyfill.
Software Plugins
For information regarding available plugins for the EYE+ Smart Control System, click the above icon. *Please note that this will take you to the page that primarily opens up for Asycube plugins, click the next tab to show the plugins for EYE+.
Supporting Documents
Free Online Simulation
Discover the intuitive EYE+ smart control system with a selection of predefined parts. Without any machine vision experience, in a few minutes you will easily configure vision recipes for the Asycube flexible feeder. Just follow the wizard step by step. Your free session will last 4 hours from the moment you sign up.
