Epson ProSix C-Series
About the Epson ProSix C-Series
Choose from over 50 configuration options to customise your C-B Series robot to fit seamlessly into your machine environment. With a wide range of options – including Epson Vision Systems, Part Feeding Systems, Force Sensing, and Conveyor Tracking – you can tailor your setup to meet any operational need. Enhance safety and efficiency with Epson’s advanced safety functions, such as Safe Limited Speed (SLS) and Safe Limited Position (SLP). Easily define safe zones, speed limits, and safety parameters using the Safety Run Room Manager, complete with an integrated 3D viewer for precise control.
Epson ProSix C4-B Series
ProSix C4-L Series compact 6-axis robots redefine small robot performance, offering exceptional flexibility in a sleek design. Ideal for handling large tasks within confined spaces. With the Safety Function Manager, you can effortlessly set safe zones and speed limits for enhanced operational security.
Equipped with cutting-edge QMEMS sensor technology, C4L-B Series minimises vibration, improves production speed, while maintaining exceptional position accuracy.
- Service Friendly Battery-less operation for less machine downtime.
- Extensive Mounting Options Floor, wall, ceiling and sunken mounting are possible.
- Reduced Vibration QMEMS technology allows faster, more accurate operation.
- Fully Integrated Complete Epson solution including robot, controller and software.
- Safer Operation User-friendly safety function manager, to set safe zones and speed.
- 600mm
- 900mm

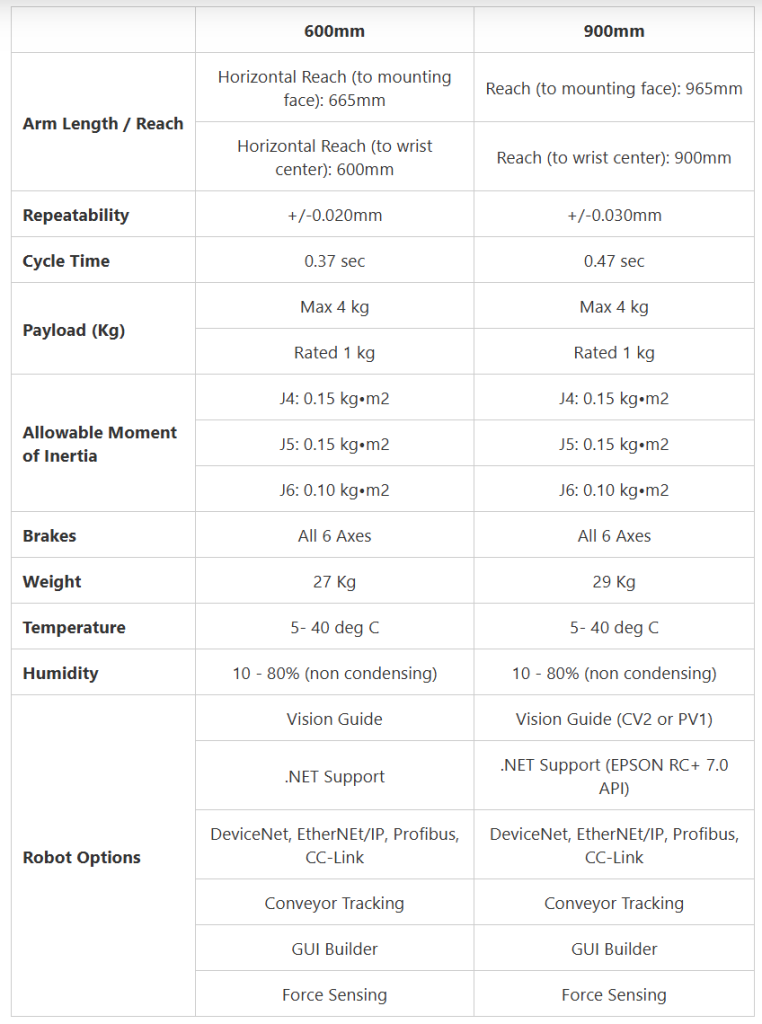

Epson C4B Series
| 600mm | 900mm | |
| Arm Length / Reach | Horizontal Reach (to mounting face): 665mm | Reach (to mounting face): 965mm |
| Horizontal Reach (to wrist center): 600mm | Reach (to wrist center): 900mm | |
| Repeatability | +/-0.020mm | +/-0.030mm |
| Cycle Time | 0.37 sec | 0.47 sec |
| Payload (Kg) | Max 4 kg | Max 4 kg |
| Rated 1 kg | Rated 1 kg | |
| Allowable Moment of Inertia | J4: 0.15 kg•m2 | J4: 0.15 kg•m2 |
| J5: 0.15 kg•m2 | J5: 0.15 kg•m2 | |
| J6: 0.10 kg•m2 | J6: 0.10 kg•m2 | |
| Brakes | All 6 Axes | All 6 Axes |
| Weight | 27 Kg | 29 Kg |
| Temperature | 5- 40 deg C | 5- 40 deg C |
| Humidity | 10 - 80% (non condensing) | 10 - 80% (non condensing) |
| Robot Options | Vision Guide | Vision Guide (CV2 or PV1) |
| .NET Support | .NET Support (EPSON RC+ 7.0 API) | |
| DeviceNet, EtherNEt/IP, Profibus, CC-Link | DeviceNet, EtherNEt/IP, Profibus, CC-Link | |
| Conveyor Tracking | Conveyor Tracking | |
| GUI Builder | GUI Builder | |
| Force Sensing | Force Sensing |
Mounting Type: Tabletop, Ceiling
Clean & ESD: ISO 3 Clean & ESD
Epson ProSix C8-B Series
The ProSix C8L-B Series compact 6-axis robots deliver high performance in a sleek, space-saving design. With the ability to handle payloads of up to 8kg, they efficiently manage mid-sized tasks whilst maintaining a small footprint. The built-in safety function manager allows for easy definition of safe zones and speed limits.
Designed with a slender arm, the C*L-B can navigate tight spaces without contact, making it ideal for applications such as removing parts from machine tools or moulding machines. These features make it a perfect choice for machine tending in the auto parts and electronics industry.
- Service Friendly Battery-less operation for less machine downtime.
- Flexible installation Light enough to be tabletop-mounted. Wiring from the side.
- Reduced Vibration QMEMS technology allows faster, more accurate operation.
- Fully Integrated Complete Epson solution including robot, controller and software.
- Safer Operation User-friendly safety function manager, to set safe zones and speed.
- 900mm
- 1400mm

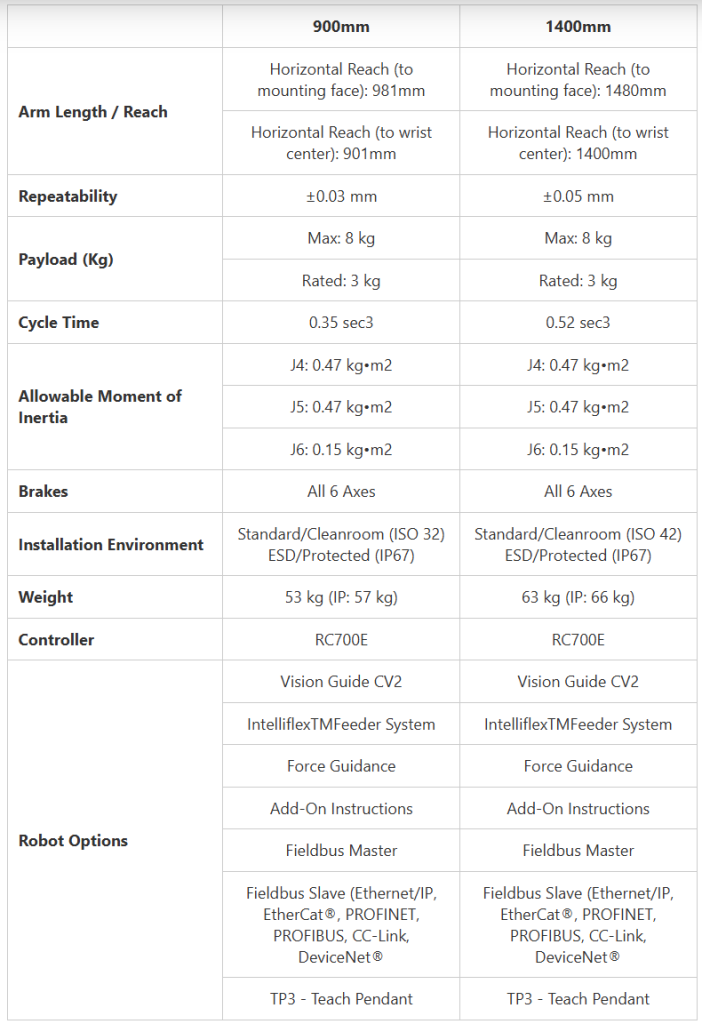

Epson C8L-B Series
| 900mm | 1400mm | |
| Arm Length / Reach | Horizontal Reach (to mounting face): 981mm | Horizontal Reach (to mounting face): 1480mm |
| Horizontal Reach (to wrist center): 901mm | Horizontal Reach (to wrist center): 1400mm | |
| Repeatability | ±0.03 mm | ±0.05 mm |
| Payload (Kg) | Max: 8 kg | Max: 8 kg |
| Rated: 3 kg | Rated: 3 kg | |
| Cycle Time | 0.35 sec3 | 0.52 sec3 |
| Allowable Moment of Inertia | J4: 0.47 kg•m2 | J4: 0.47 kg•m2 |
| J5: 0.47 kg•m2 | J5: 0.47 kg•m2 | |
| J6: 0.15 kg•m2 | J6: 0.15 kg•m2 | |
| Brakes | All 6 Axes | All 6 Axes |
| Installation Environment | Standard/Cleanroom (ISO 32) ESD/Protected (IP67) | Standard/Cleanroom (ISO 42) ESD/Protected (IP67) |
| Weight | 53 kg (IP: 57 kg) | 63 kg (IP: 66 kg) |
| Controller | RC700E | RC700E |
| Robot Options | Vision Guide CV2 | Vision Guide CV2 |
| IntelliflexTMFeeder System | IntelliflexTMFeeder System | |
| Force Guidance | Force Guidance | |
| Add-On Instructions | Add-On Instructions | |
| Fieldbus Master | Fieldbus Master | |
| Fieldbus Slave (Ethernet/IP, EtherCat®, PROFINET, PROFIBUS, CC-Link, DeviceNet® | Fieldbus Slave (Ethernet/IP, EtherCat®, PROFINET, PROFIBUS, CC-Link, DeviceNet® | |
| TP3 - Teach Pendant | TP3 - Teach Pendant |
Mounting Type: Tabletop, Ceiling, Wall
Clean & ESD: ISO 3 Clean & ESD/Protected
Epson ProSix C12-B Series
The Epson ProSix C12XL-B 6-axis robot series combines high performance with a space-saving design. Its slim profile allows it to handle payloads of up to 12kg while efficiently managing mid-sized tasks in confined workspaces. With the Safety Function Manager, you can easily configure safe zones and speed limits to ensure smooth and secure operations.
Designed for maximum usability, the Epson RC+ development environment offers an intuitive Windows-based interface, open structure, and built-in image processing, providing a seamless and efficient solution for your automation solution.
- Service Friendly Battery-less operation for less machine downtime.
- Flexible installation Light enough to be tabletop-mounted. Wiring from the side.
- Reduced Vibration QMEMS technology allows faster, more accurate operation.
- Fully Integrated Complete Epson solution including robot, controller and software.
- Safer Operation User-friendly safety function manager, to set safe zones and speed.
1400mm

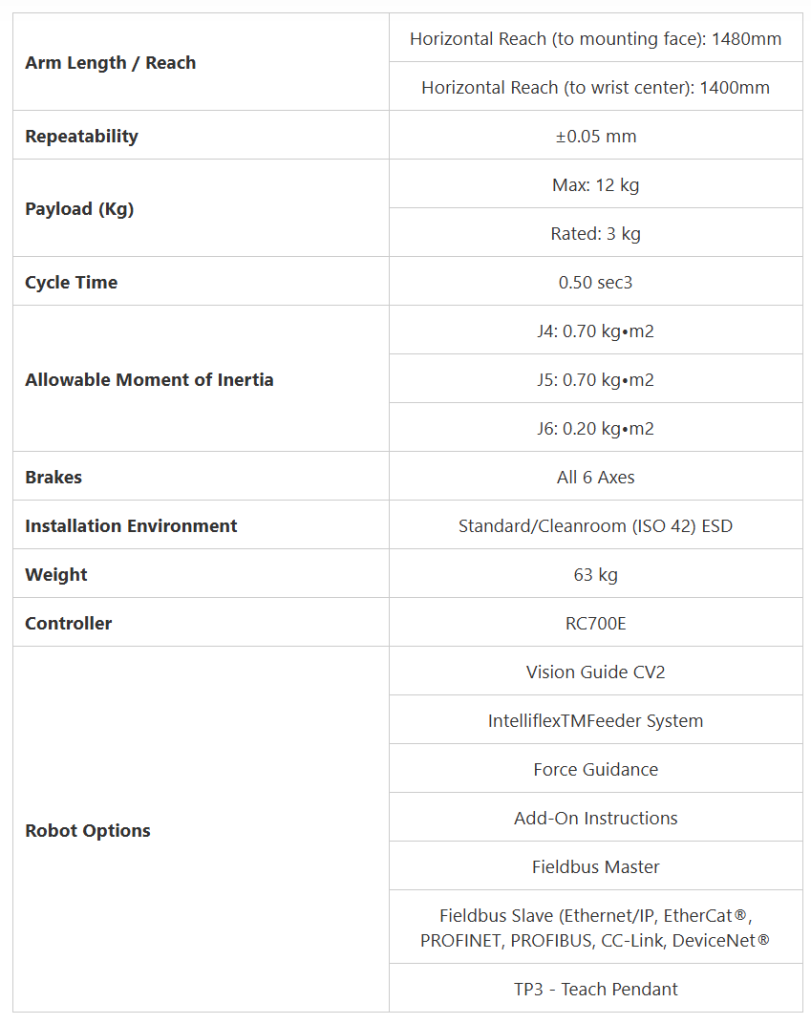

Epson C12XLB Series
| Arm Length / Reach | Horizontal Reach (to mounting face): 1480mm |
| Horizontal Reach (to wrist center): 1400mm | |
| Repeatability | ±0.05 mm |
| Payload (Kg) | Max: 12 kg |
| Rated: 3 kg | |
| Cycle Time | 0.50 sec3 |
| Allowable Moment of Inertia | J4: 0.70 kg•m2 |
| J5: 0.70 kg•m2 | |
| J6: 0.20 kg•m2 | |
| Brakes | All 6 Axes |
| Installation Environment | Standard/Cleanroom (ISO 42) ESD |
| Weight | 63 kg |
| Controller | RC700E |
| Robot Options | Vision Guide CV2 |
| IntelliflexTMFeeder System | |
| Force Guidance | |
| Add-On Instructions | |
| Fieldbus Master | |
| Fieldbus Slave (Ethernet/IP, EtherCat®, PROFINET, PROFIBUS, CC-Link, DeviceNet® | |
| TP3 - Teach Pendant |
Mounting Type: Tabletop
Clean & ESD: ISO 4 Clean & ESD
