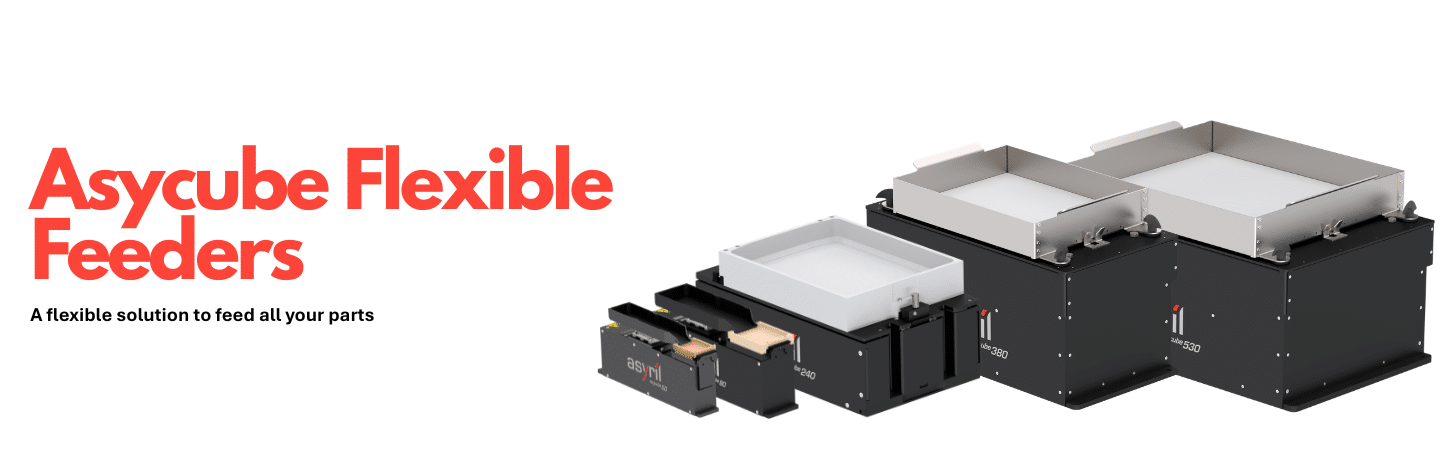

About Asycube Flexible Feeders
Asyril developed cutting-edge vibratory parts flexible feeders to provide an efficient and reliable solution for the unbulking of all types of components. With a focus on versatility and compatibility, the Asycube works seamlessly with all robots and PLCs, thanks to its TCP/IP and Modbus TCP-compatible communication protocols. With various plugins available to ensure easy and fast system integration. When paired with EYE+, you can fully optimise the performance of your Asycube. Engineered to move parts swiftly in all directions. Effectively eliminating corner and edge build-up, prevents part recirculation, and smoothly handles delicate parts through precise frequency and amplitude control. Asyril’s patented 3-axis vibration technology delivers superior cycle times and enhanced machine efficiency, even on structured, slotted, or perforated platforms. Asycube Flexible Feeders offer a powerful, adaptable, and smart solution for manufacturers looking to boost productivity and streamline automation processes.
See all Asycube Flexible Feeders
Asycube 50
Ideal for components between 0.1 - 5mm in size
Asycube 50 flexible feeder is ideal for small flat or cubic components between 0.1 and 5 millimeters in size, such as gemstones, watch parts, small medical or electronic components.
Benefits
- Compatible with 99% of types of parts and geometries
- Short cycle times
- Pre-orientation and gentle separation of components thanks to patented 3-axis system
- Easy settings and integration
- Compatible with all types of robots and PLC
- Compact and flexible feeder with integrated controller
- Reduced production changeover time
- Swiss quality product with no maintenance required
Technical Specification
- Dimensions of vibrating platform: 45 x 34 mm; ~50 mm diagonal
- General dimensions: 293 x 46 x 140 mm
- Hopper sizes: 10 cm3 / 110 cm3
- Weight: 3.1 kg
Accessories
- Hopper, various sizes and materials available
- Plates for all types of parts, various structures and materials available
- Integrated backlight, available in 5 colours
- Purge platform
- Gateway for communication via different fieldbuses
Asycube 80
Ideal for components between 3 - 15mm in size
The Asycube 80 flexible feeder is ideal for small flat or cubic components between 3 and 15 millimeters in size, such as gemstones, watch parts, small medical or electronic components.
Benefits
- Compatible with 99% of types of parts and geometries
- Short cycle times
- Pre-orientation and gentle separation of components thanks to patented 3-axis system
- Easy settings and integration
- Compatible with all types of robots and PLC
- Compact and flexible feeder with integrated controller
- Reduced production changeover time
- Swiss quality product with no maintenance required
Technical Specification
- Dimensions of vibrating platform: 65 x 52 mm; ~80 mm diagonal
- General dimensions: 320 x 65 x 140 mm
- Hopper sizes: 160 cm3
- Weight: 3.7 kg
Accessories
- Hopper, various sizes and materials available
- Plates for all types of parts, various structures and materials available
- Integrated backlight, available in 5 colours
- Purge platform
- Gateway for communication via different fieldbuses
Asycube 240
Ideal for components between 5 - 40mm in size
The Asycube 240 flexible feeder is ideal for small flat or cubic components with a size between 5 and 40 millimeters, such as electronic components, fuses, screws, fasteners, washers.
Benefits
- Compatible with 99% of types of parts and geometries
- Short cycle times
- Pre-orientation and gentle separation of components thanks to patented 3-axis system
- Easy settings and integration
- Compatible with all types of robots and PLC
- Compact and flexible feeder with integrated controller
- Reduced production changeover time
- Swiss quality product with no maintenance required
Technical Specification
- Dimensions of vibrating platform: 195 x 150 mm; ~240 mm diagonal
- General dimensions: 300 x 171 x 132 mm
- Hopper sizes: 2 litres / 3 litres
- Weight: 7.8 kg
Accessories
- Multi-feeding up to 4 parts with EYE+
- Plates for all types of parts, various structures and materials available
- Integrated backlight, available in 5 colours
- Purge platform
- Gateway for communication via different fieldbuses
Asycube 380
Ideal for components between 15 - 60mm in size
Asycube 380 flexible feeder is ideal for components ranging between 15 and 60 millimeters in size, such as complex fasteners, large-volume parts, and joints
Benefits
- Compatible with 99% of types of parts and geometries
- Short cycle times
- Pre-orientation and gentle separation of components thanks to patented 3-axis system
- Easy settings and integration
- Compatible with all types of robots and PLC
- Compact and flexible feeder with integrated controller
- Reduced production changeover time
- Swiss quality product with no maintenance required
Technical Specification
- Dimensions of vibrating platform: 254 x 325 mm; ~380 mm diagonal
10 x 12.8 in; ~14.96 in diagonal - General dimensions: 499 x 257 x 307 mm
19.6 x 10.1 x 12.1 in - Hopper sizes: 10 litres
- Weight: 20 kg
Accessories
- Multi-feeding up to 4 parts with EYE+
- Plates for all types of parts, various structures and materials available
- Integrated backlight, available in 5 colours
- Purge platform
- Gateway for communication via different fieldbuses
- Different platform frame sizes
Asycube 530
Ideal for components between 30 - 150mm in size
530 Asycube flexible feeder is ideal for components ranging between 30 and 150 millimeters in size, such as large complex housings and bearings.
Benefits
- Compatible with 99% of types of parts and geometries
- Short cycle times
- Pre-orientation and gentle separation of components thanks to patented 3-axis system
- Easy settings and integration
- Compatible with all types of robots and PLC
- Compact and flexible feeder with integrated controller
- Reduced production changeover time
- Swiss quality product with no maintenance required
Technical Specification
- Dimensions of vibrating platform: 427 x 371 mm; ~530 mm diagonal
16.8 x 14.6 in; ~20.9 in diagonal - General dimensions: 600 x 372 x 320 mm 23.7 x 14.7 x 12.6 in
- Hopper sizes: 15 litres
- Weight: 31 kg
Accessories
- Multi-feeding up to 4 parts with EYE+
- Plates for all types of parts, various structures and materials available
- Integrated backlight, available in 5 colours
- Purge platform
- Gateway for communication via different fieldbuses
- Different platform frame sizes
- Noise reduction plate
- Asyfill, various sizes available
FAQs
What size parts can an Asycube Flexible Feeder handle?
The Asycube Flexible Feeders are capable of handling components from 0.1mm to 150mm. If you are working with components less than 5mm, the Asycube 50 or 80 would be a suitable choice. If your component size is between 5mm to 15mm, then suitable Asycube options would be the Asycube 80, Asycube 240 and Asycube Clean 230. For parts that range between 15mm to 25mm, then the Asycube 240, Asycube 380 and Asycube Clean 230 are suitable options. Working with components that are from 25mm to 40mm, then the Asycube 240, Asycube 380, Asycube 530 and Asycube Clean 230 would be a suitable option. If you’re working with larger components ranging from 40mm to 60mm, then the Asycube 380 and Asycube 530 would be an ideal choice.
How noisy is an Asycube?
Which robots are compatible with an Asycube Flexible Feeder?
Visit Asyril
To discover how Asyril can enhance your automation performance, visit their website for full details on the Asycube Flexible Feeder, the Eye+ Smart Control System, and their complete flexible feeding ecosystem. Explore specifications, applications, and integration options to see how Asyril can support your next project.
